Funzionamento dell’anello liquido - Aspirazione

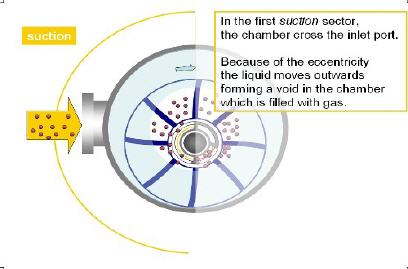

In this "suction"-sector, because of the eccencitricity of the rotor, the liquid ring is moving outwards of the chamber: The volume of the chamber increases. The moving of the ring creates a void, a vacuum, the gas is entering into the chamber as in this sector the chamber is crossing the inlet port.

the liquid ring segment between two blades is acting like a piston causing intake, compression and discharge.
